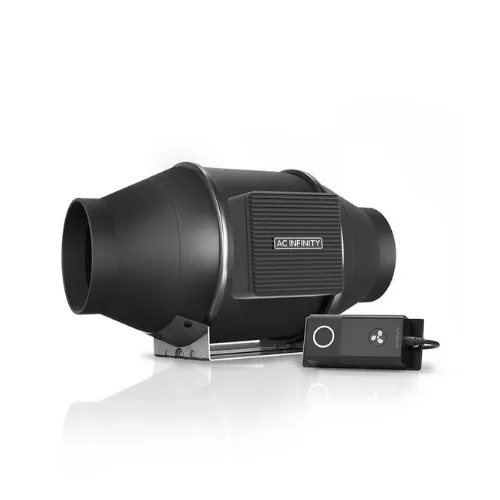

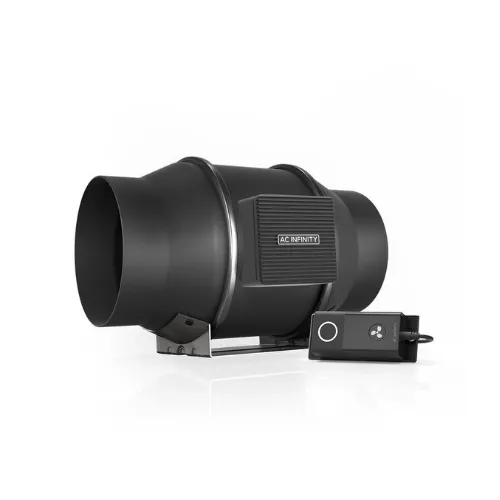

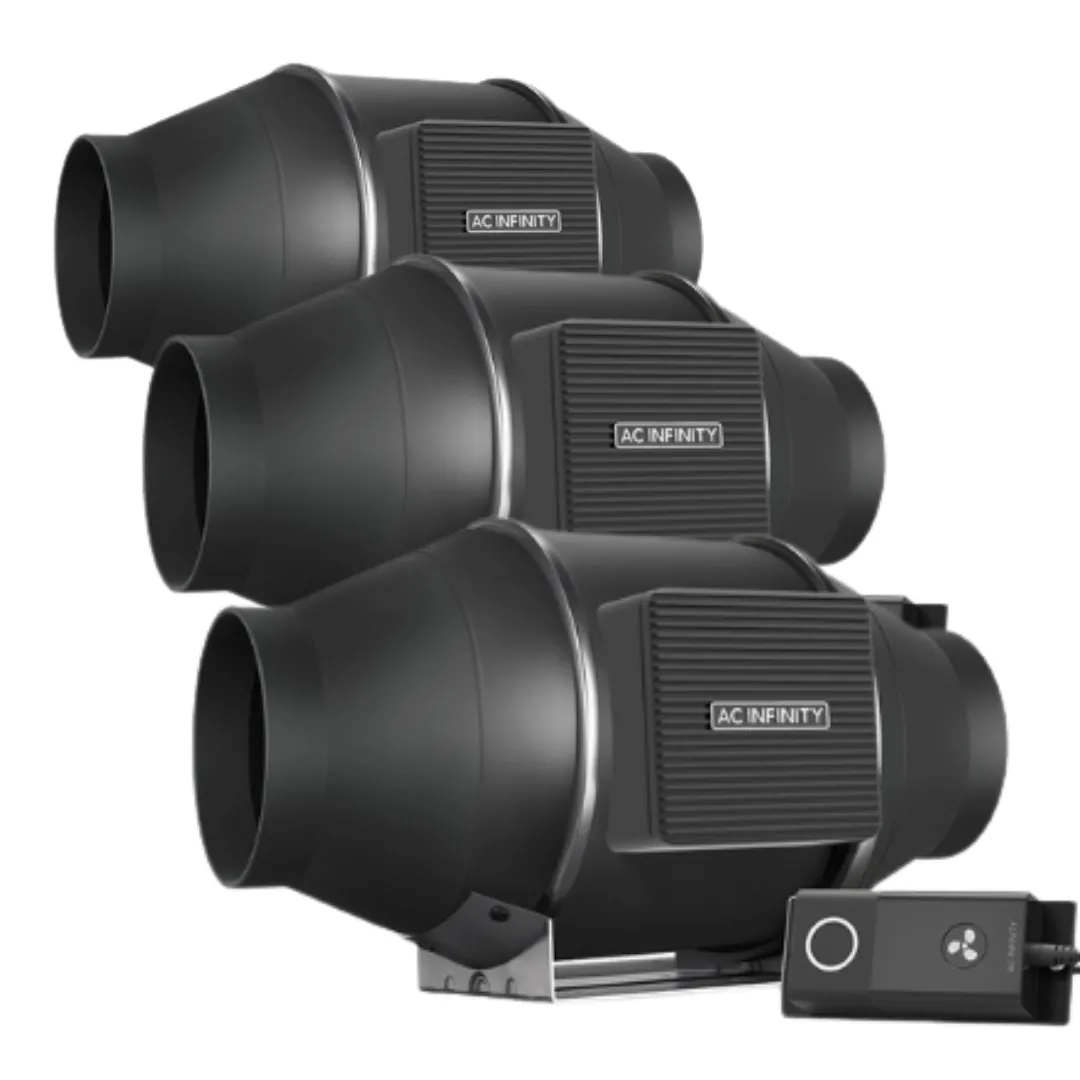

AC Infinity Cloudline EC Fan S-series

AC Infinity Cloudline EC Fan S-series

  • 4348m3h
  • 6683m3h
  • 81371m3h
  • 102040m3h

$ 56.29

$ 43.30

Please select combo product attributes
The combo subtotal is $,SAVE$
Unavailable

Product Details

The one and only. AC Infinity fans. Energy-efficient, quiet AF and value for money. These S-series have a manual 8-speed controller

  • Features an 8-speed manual controller utilizing PWM. .

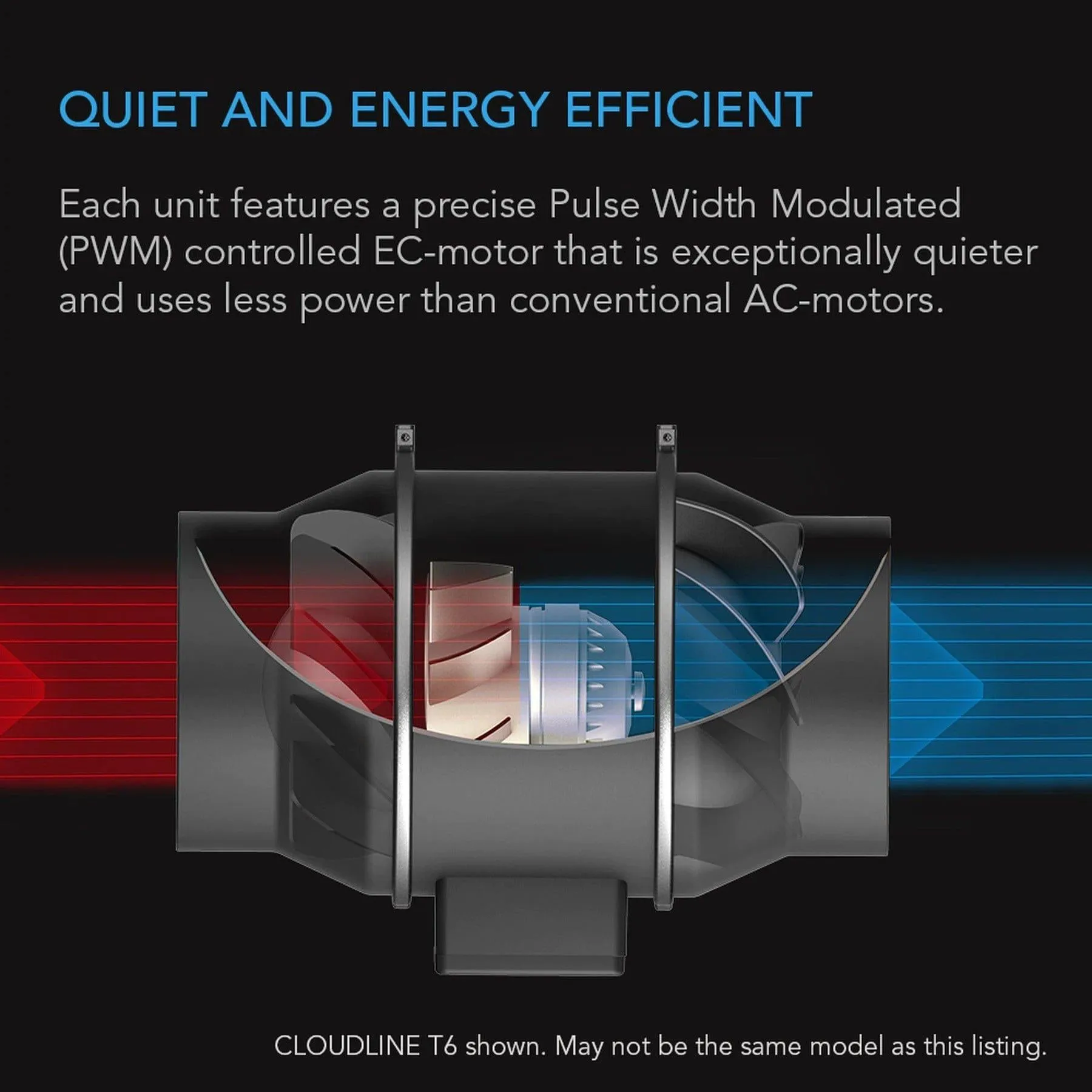

  • Mixed flow design combined with a PWM-controlled EC motor for a truly quiet and energy-efficient performance.
  • Kit also includes a corded AC power adapter, an installation manual, and all necessary mounting hardware.

LOOKING FOR A COMPLETE AC INFINITY EXTRACTION BUNDLE?

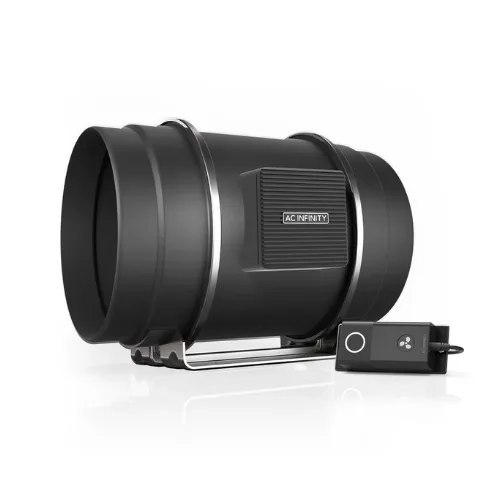

Features an inline speed controller utilizing PWM (Pulse Width Modulation) technology. Contains an EC motor for quiet and energy-efficient performance. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance. The complete kit includes one duct fan unit, one inline speed controller, an installation manual, all necessary mounting hardware, and all necessary mounting hardware.

PRECISE SPEED CONTROLLER

The inline speed controller enables you to set the duct fan’s speed to optimal noise and airflow levels for various environments. Unlike common AC-powered duct fans that suppress voltage to control fan speeds, this duct fan features an EC-motor that is precisely controlled using PWM (Pulse Width Modulation).

This technology enables the fan's motor to be able to run smoothly at extremely low RPM speeds without generating motor noises and heat as seen on variable voltage controllers.

Eight-speed options are available with a power switch, and backup memory.

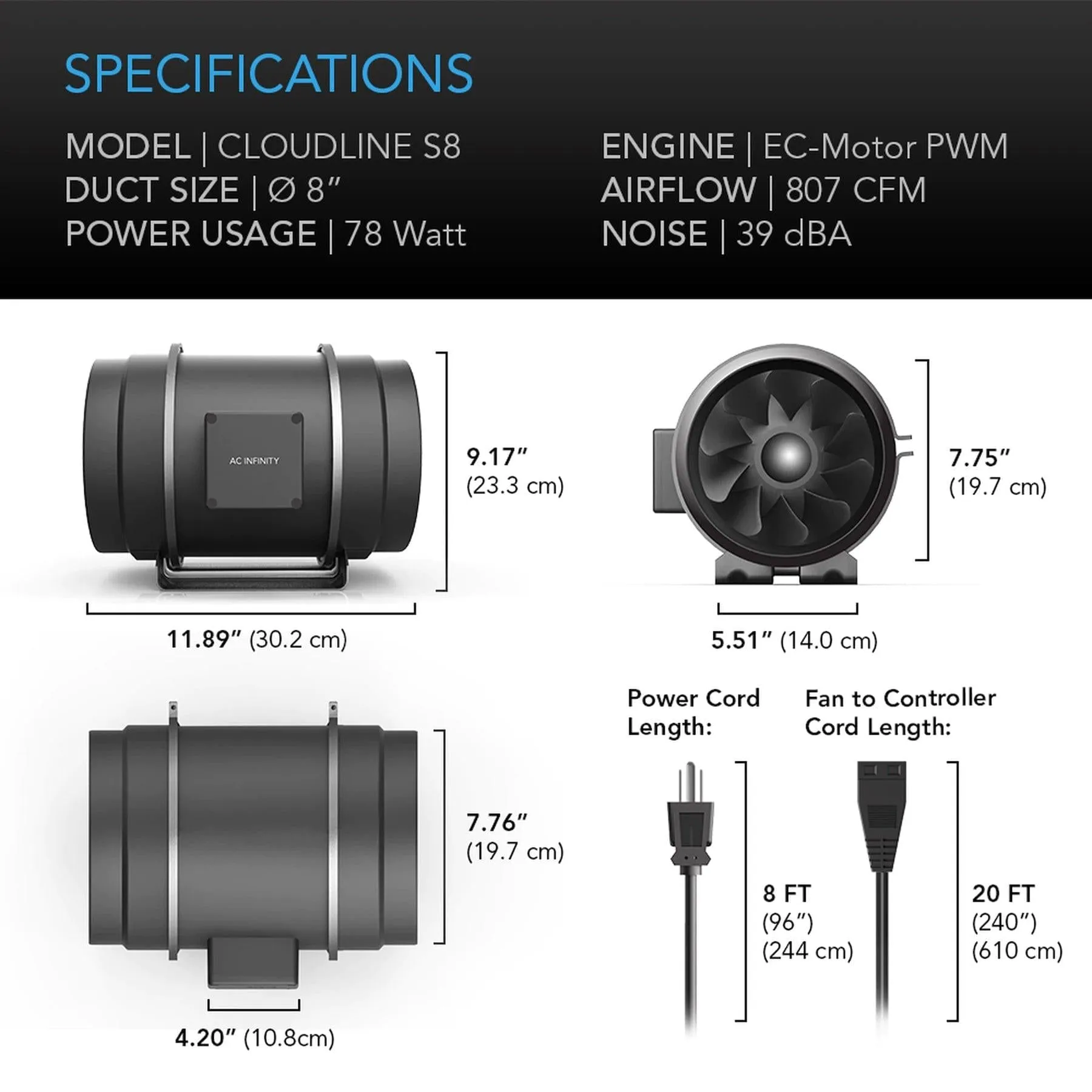

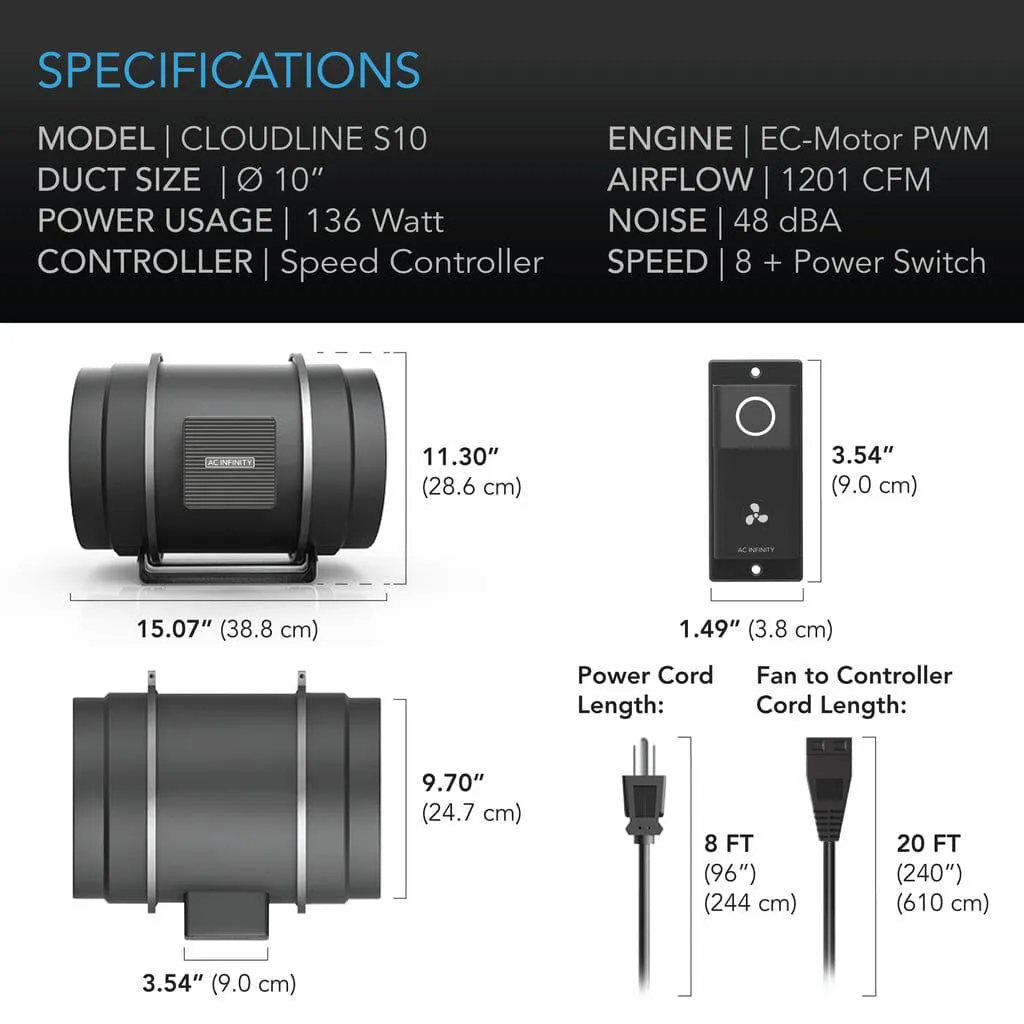

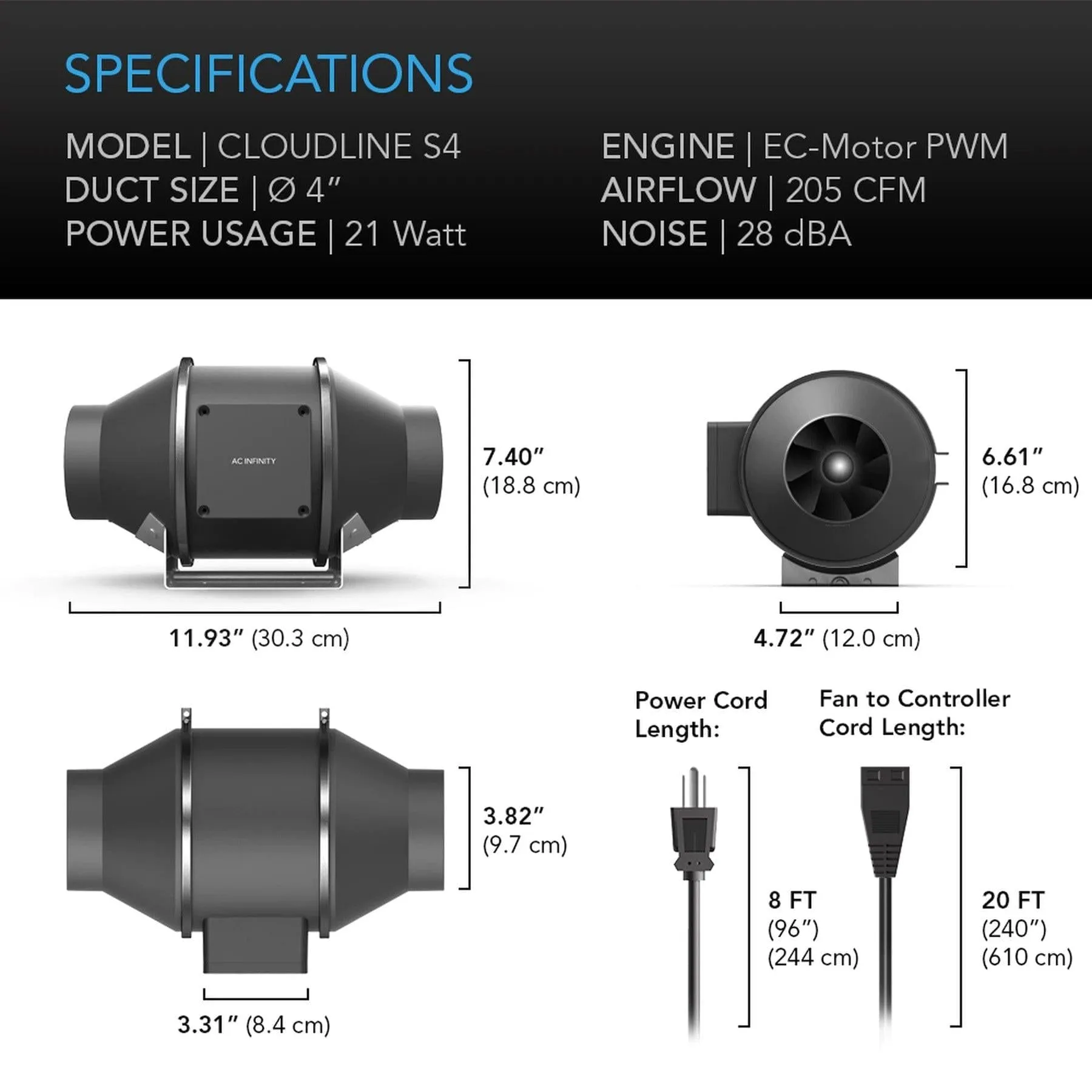

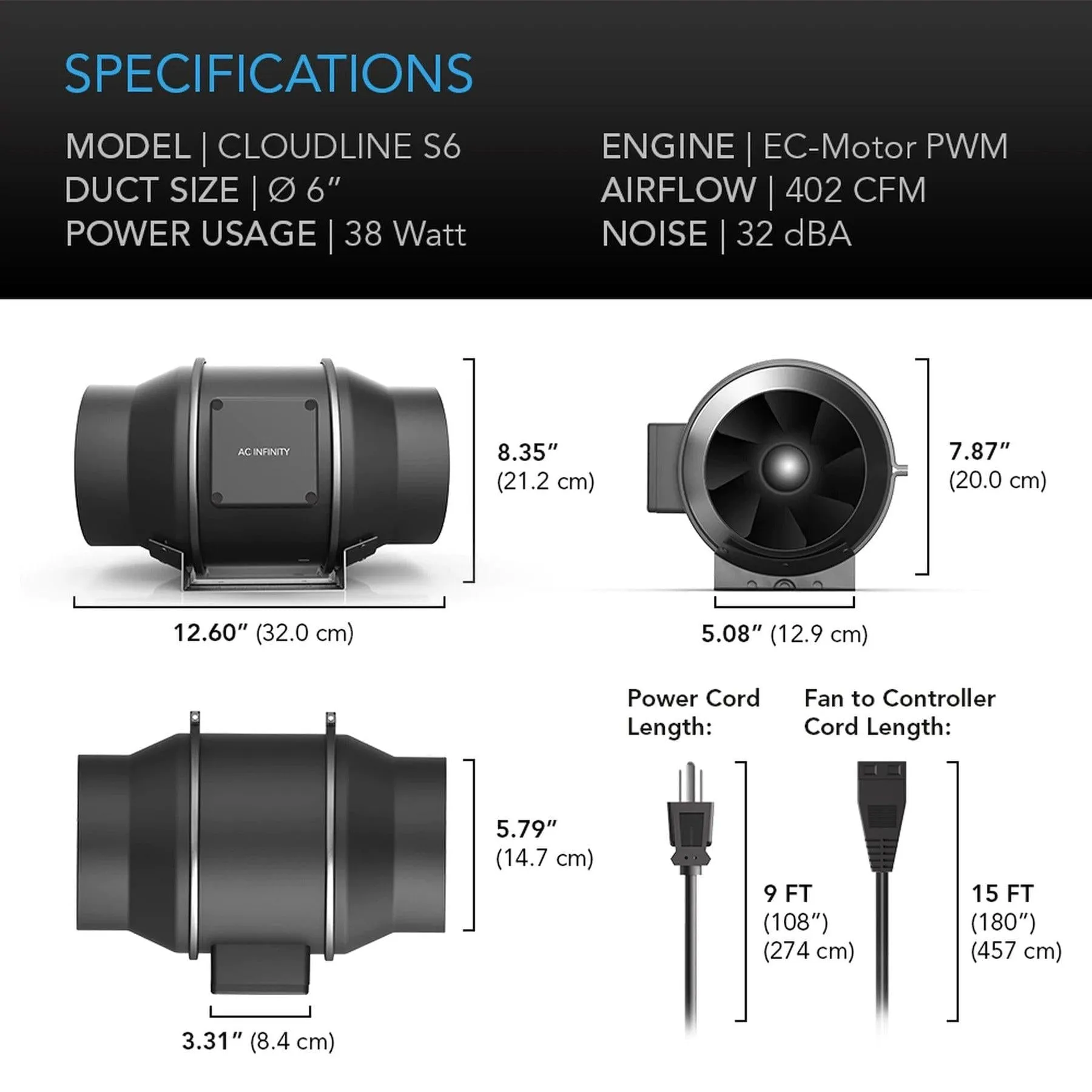

Product NameCLOUDLINE S4CLOUDLINE S6CLOUDLINE S8CLOUDLINE S10
Product ModelAI-CLS4AI-CLS6AI-CLS8AI-CLS10
Duct Size4"6"8"10"
Total Airflow348.29m3/h683m3/h1371m3/h2040m3/h
Fan Dimensions18.8 x 30.3 x 17.6 cm21.2 x 32.0 x 20.0 cm21.7 x 30.2 x 12.3 cm24.9 x 38.6 x 28.6 cm
Total Noise28 dBA32 dBA39 dBA48 dBA
Cord Length to Controller240 in180 in240 in240 in
Cord Length to Plug96 in108 in 96 in.  96 in.
Static Pressure223 Pa503 Pa746 Pa352 Pa
Max Power Draw28 W64 W110 W250 W
Average Power Usage21 W38 W78 W136 W
Current1.2 A1.67 A2.27 A2.7 A
